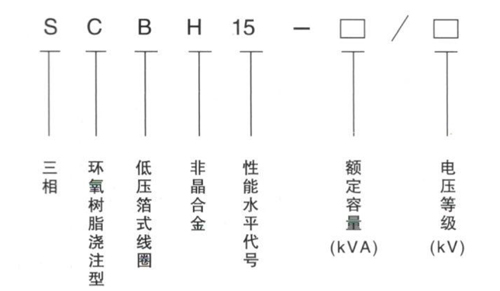

SCBH15 Dry type Amorphous Alloy Transformer

■Product Features:

Structural modeling: Our company produces three-phase three-column amorphous alloy dry-type transformer, inherited the advantages of cast dry-type transformer, more reasonable structure, more reliable performance.

Low loss: product no-load loss than SCB10 dry-type transformer products to reduce more than 40%, energy-saving effect is excellent, economic operation, maintenance-free.

低噪声:产品噪声水平比现行专业标准JB/T10088- 2004《6-220KV级变压器声级》低10- 15分贝以上。

Low noise: product noise level than the current professional standards JB/T10088-2004 "6-220KV transformer sound level" is lower than 10-15 dB or more.

The glass fiber and other insulating materials used for winding coils are self-extinguishing, so no arcs are generated by short circuits, and the resin does not produce toxic or harmful gases under high heat.

High mechanical strength: the resin with filler makes the expansion coefficient difference within the casting body is small, the curing shrinkage is small, the internal stress is small, the hardness of the cured material is high, in the high and low voltage coil inside and outside the surface of the epoxy resin encapsulation layer, placed in a prefabricated reinforcing material, has the same dense structure as the reinforced concrete, and thus the mechanical strength is greater than the pure epoxy resin, and can withstand a sudden short-circuit electric force and no damage.
