SCB11-800KVA Dry Type Transformer

Well-designed coil structure and vacuum impregnation treatment process make SCB11-800KVA/10KV/0.4KV Dry-type Transformer, no partial discharge generation, and in the whole life span, without any cracking phenomenon, no decline in the level of insulation phenomenon.

High-voltage continuous winding, low-voltage foil winding, the overall vacuum impregnation and curing treatment and the use of high-strength ceramic support, has a very good ability to withstand sudden short-circuit current.

Refractory, Flame Retardant, Non-toxic, Self-extinguishing, Fireproof. Under high temperature open flame combustion, almost no smoke is produced.

The insulation is extremely thin and homogeneous and has a very high short-term overload capacity of 120% long-term overload and 140% overload for 3 hours without forced cooling. Since the insulation material is non-aging and flexible, it can be immediately loaded to full load at ±50℃.

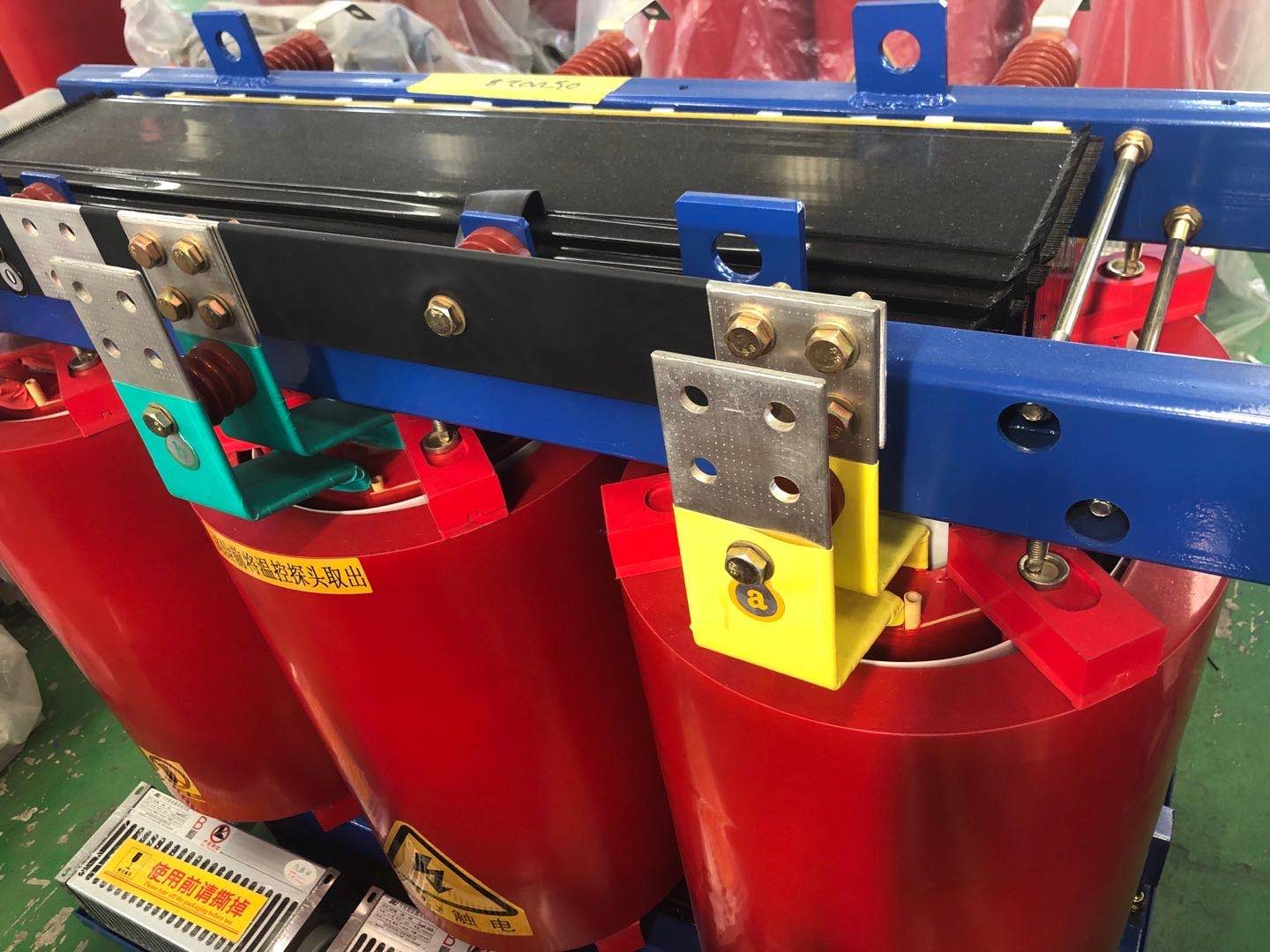

SCB11-800KVA/10KV/0.4KV Dry Type Transformer

Product Usage:

It can be installed near lakes and seas, riverside dirty and humid environments and areas with high fire protection requirements and large loads, and is suitable for high-rise buildings, airports, stations, piers, subways, hospitals, power plants, metallurgical industry, shopping centers, residential areas, and places such as petrochemicals, nuclear power plants, and so on.

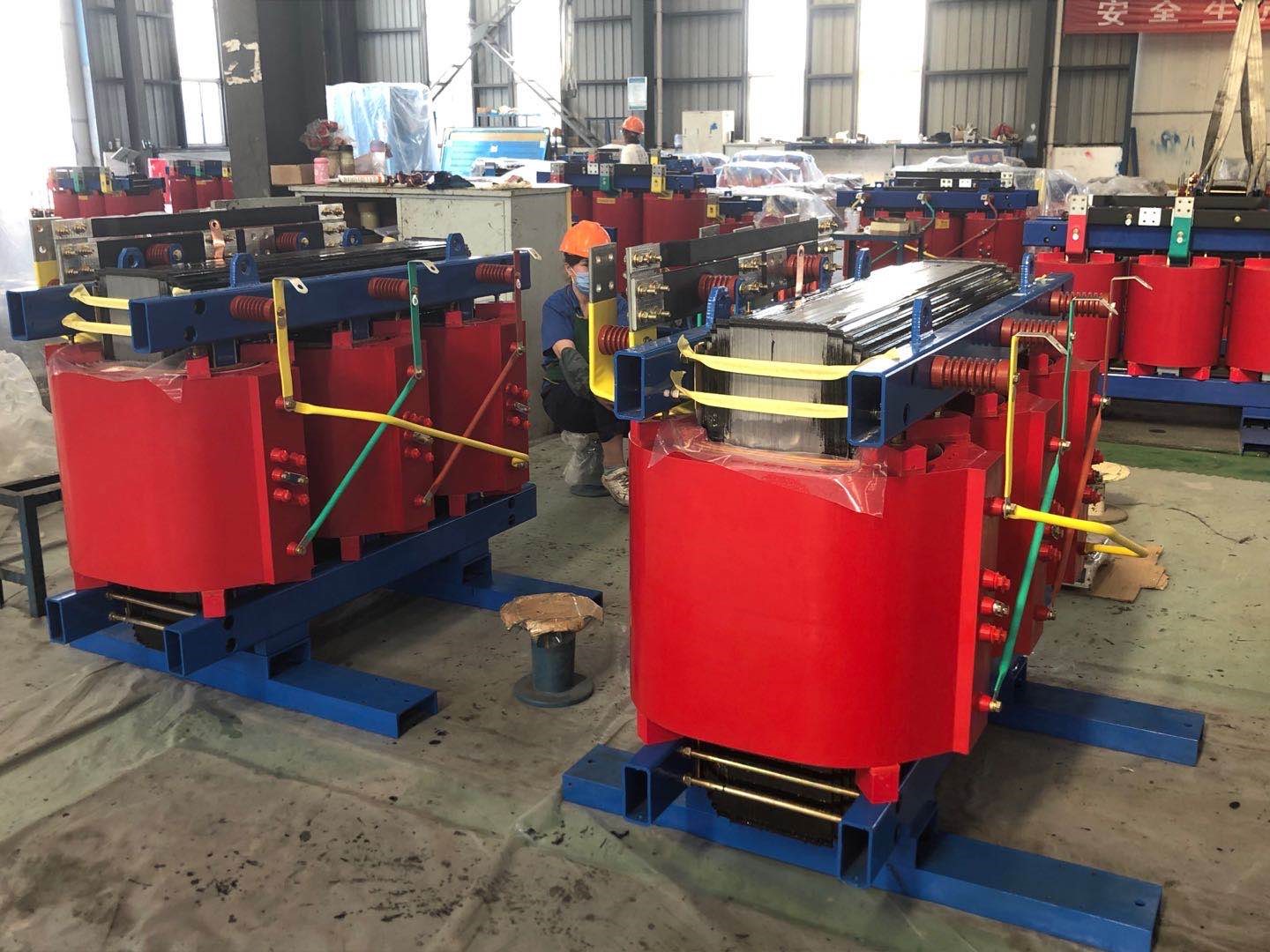

SCB11-800KVA/10KV/0.4KV Dry Type Transformer

Product Features:

Safe, fireproof, non-polluting, and can be operated directly in the load center.

High mechanical strength, strong short-circuit resistance, small partial discharge, good thermal stability, high reliability and long service life.

Low loss, low noise, energy-saving effect is obvious, maintenance-free.

Good heat dissipation, high overload capacity, and higher capacity operation when forced air-cooling.

Good heat dissipation, high overload capacity, and higher capacity operation when forced air-cooling.

Perfect temperature monitoring and protection system. Adopting intelligent signal temperature control system, it can automatically monitor and tour display the respective working temperature of three-phase windings, automatically start and stop the fan, and have alarm, trip and other function settings.

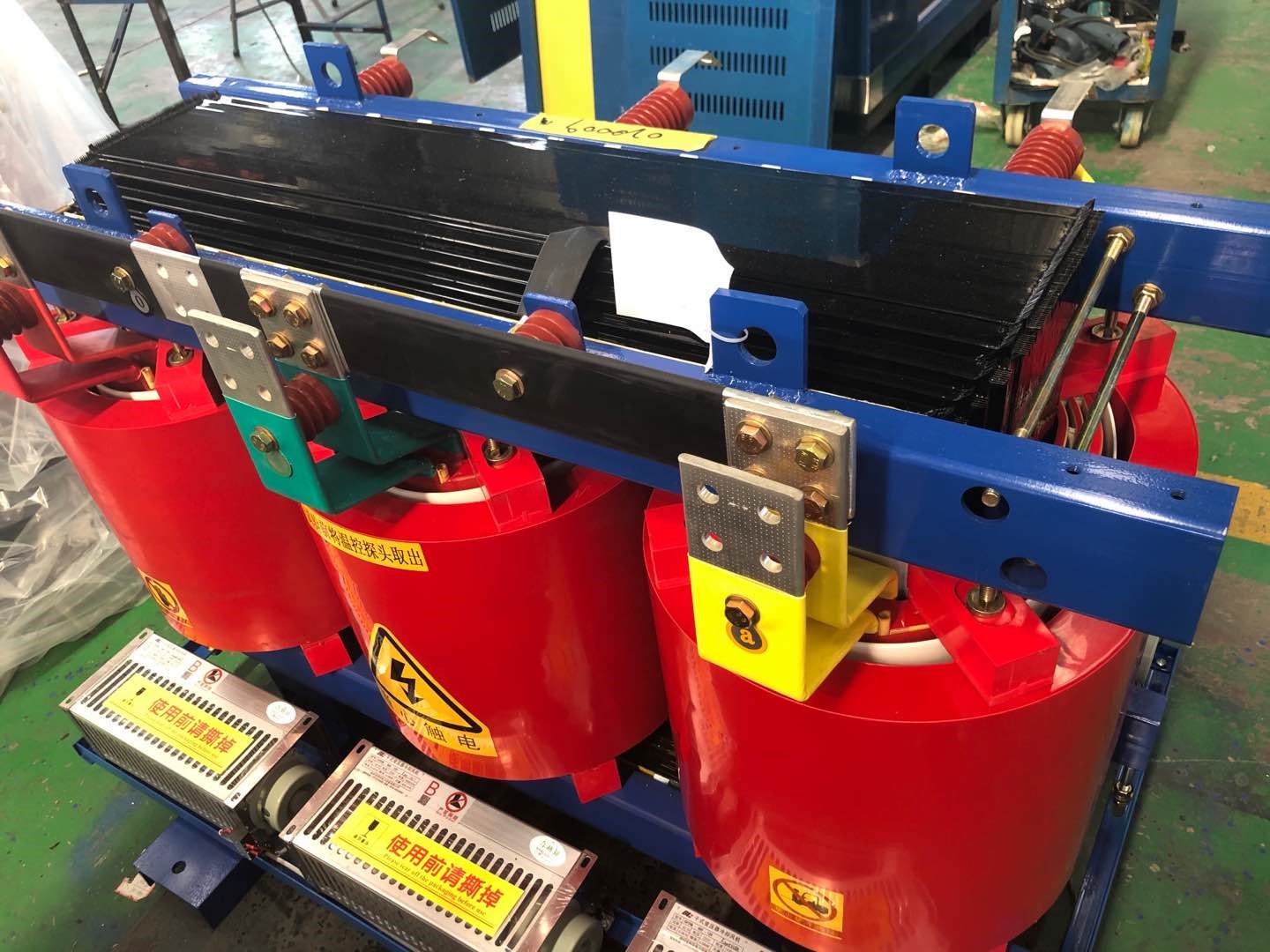

SCB11-800KVA/10KV/0.4KV Dry Type Transformer

Small size, light weight, less space occupied, low installation cost.
