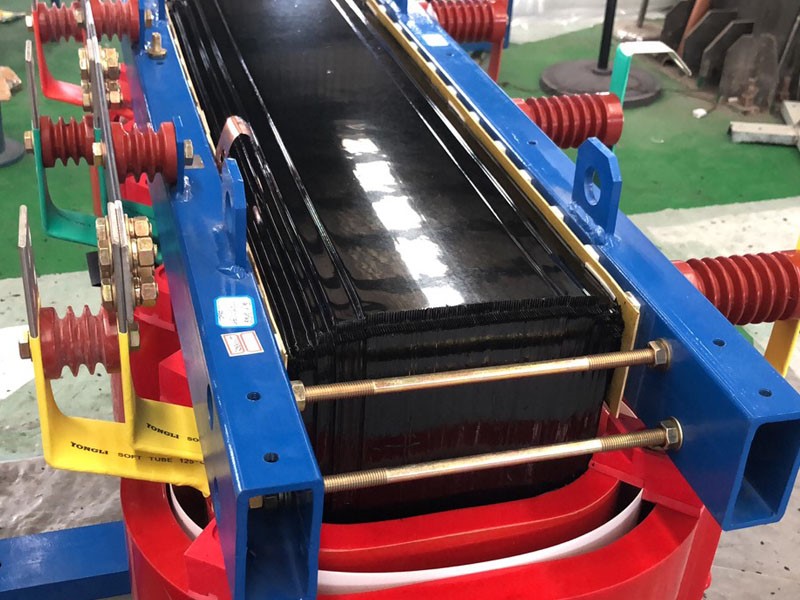

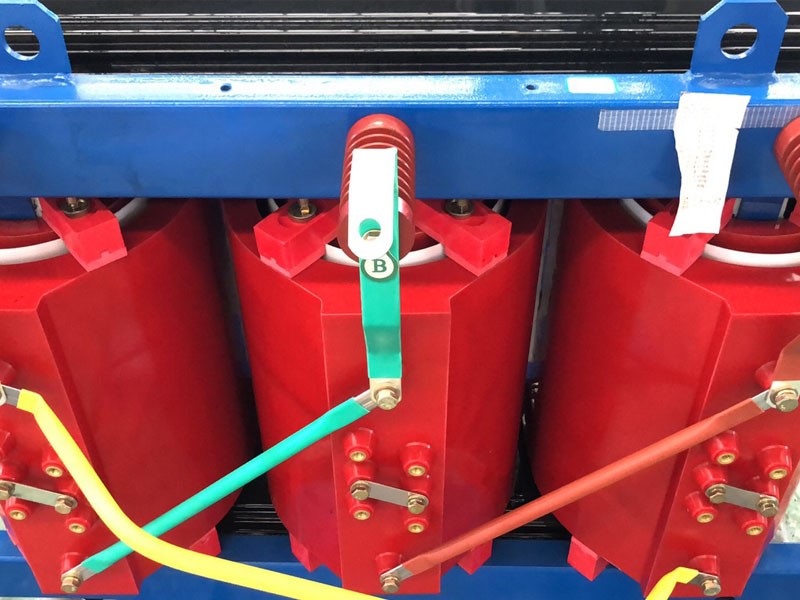

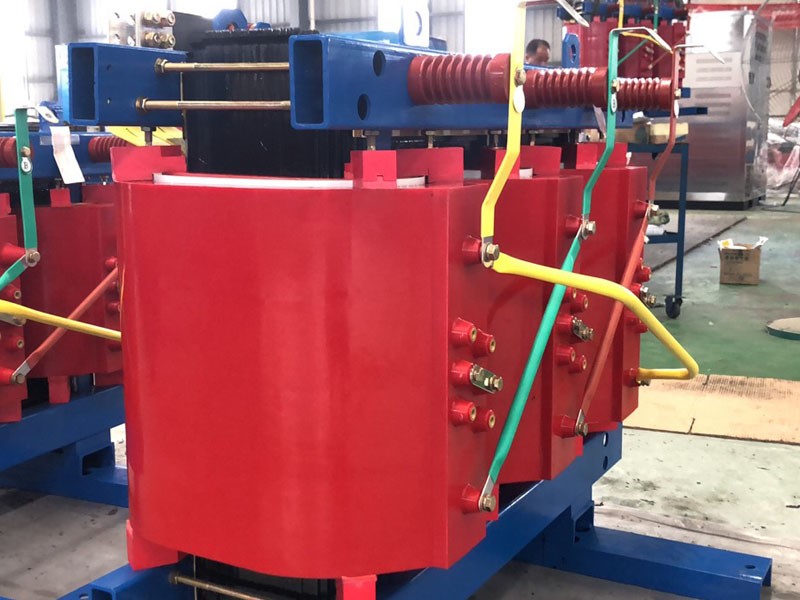

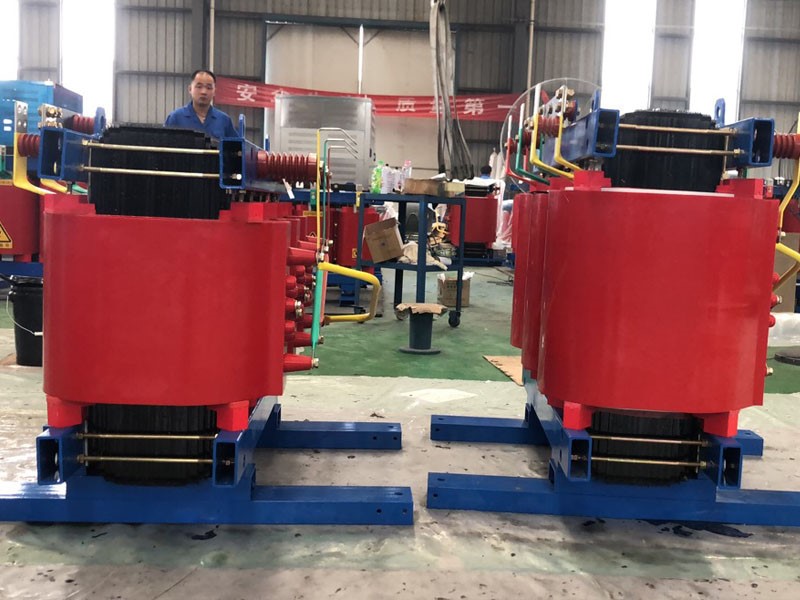

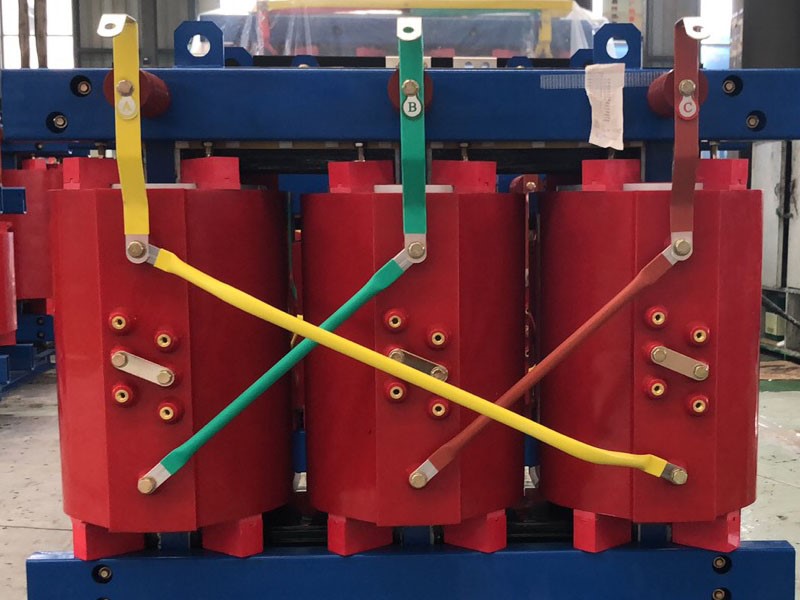

SCB10-500KVA Dry Type Aluminum Transformer

Release time:2020-07-15

Model name:SCB10-500KVA
No load loss:1160W
Capacity:500KVA
Voltage:4.0%
Material:全铝

Product details

SCB10-500KVA Dry Type Aluminum Transformer
SCB10-500KVA Dry Type Aluminum Transformer
SCB10-500KVA Dry Type Aluminum Transformer
SCB10-500KVA Dry Type Aluminum Transformer
SCB10-500KVA Dry Type Aluminum Transformer

■Product Usage：
SCB10-500KVA all-aluminum dry-type transformer according to the standard "Dry-type Power Transformer" manufacturing, this product performance loss is low, energy-saving effect is good, running economy, maintenance-free. In addition to advanced process structure, high level of resistance to short-circuit, lightning impact, but also has the characteristics of blocking, moisture-proof, dust-proof, low noise, etc., can be deep load. Widely used in high-rise buildings, airports, stations, docks, power plants, substations, etc.. It is especially suitable for installation and use in places with high fire protection requirements such as flammable and explosive.

■Performance Parameters:
SCB10-500KVA Dry-type Transformer Main Performance Parameters Please check table as below.

Number of phases: 3-phase
Frequency: 50Hz
Insulation heat-resistant grade: F class
Average temperature rise of winding: ≤100K
Partial discharge: less than 5pc

■Model Meaning:

SCB10-500KVA Dry Type Transformer Aluminum
