Energy-saving and Environmentally Friendly Dry-type Transformers

发布时间：2020-07-03 点击次数：55346

Invention Patent of Xuzhou Pengcheng Electric Co., Ltd, No. CN201820878169.0 .

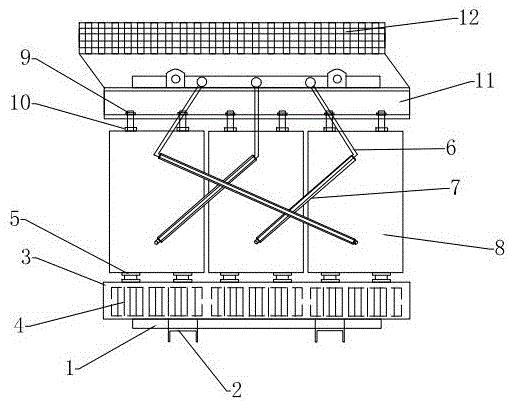

The present invention patent is a kind of energy-saving and environmentally friendly dry-type transformer, including: a base, an elastic spacer, a shock-absorbing spacer, and a solar power supply panel, said base has an inherent support frame underneath, and said base is fixedly connected to a lower fixing bracket in the form of an I-beam shape on top of said base.

节能环保干式变压器

Said lower frame is fixed with a fan, said lower frame is provided with a coil above, said lower frame and coil are provided with anti-vibration and anti-loosening elastic spacers, said coil is connected to the upper frame by bolts, said bolts are provided with shock-absorbing shims for muffling and vibration damping, there is a connecting rod between the upper frame and the coil, said connecting rod is provided with sound-absorbing cotton on the outer side, and there is a solar energy power supply panel above the said upper frame. The solar power supply panel is provided above said upper fixing frame. Compact structure, economic and environmental protection, low noise, reduce electrical energy consumption, save resources.
