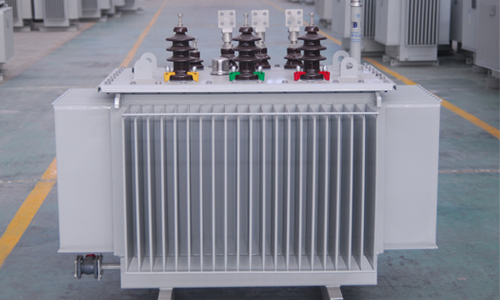

S11 Oil immersed Transformer Structure

Our S11 oil-immersed transformer is often used in power equipment, it is in our production and life in the role can not be ignored. S11 oil-immersed transformer to play out its important role, we should be for the S11 oil-immersed transformer each part of the structure of the structure of the summarized and a variety of structures to improve, especially the S11 oil-immersed transformer of the basic components and the main important structure to be clear, so that the S11 oil transformer more safe and efficient operation. Structure to be clear, making the S11 oil-immersed transformer more safe and efficient operation.

The basic structure of S11 Oil-immersed Transformer:

The basic structure of s11 oil-immersed transformer is divided into four parts:

Iron core - s11 oil-immersed transformer magnetic circuit;

The winding - the circuit of s11 oil-immersed transformer; the

Insulation structure.

Oher parts such as oil tank.

Iron core

Iron core is composed of two parts: core column and yoke. s11 oil-immersed transformer's main magnetic circuit, in order to improve the magnetic conductivity and reduce iron loss, with a thickness of 0.35-0.5mm, the surface of the insulating varnish coated with hot-rolled or cold-rolled silicon steel sheet stacked.

Winding

Winding is the circuit of s11 oil-immersed transformer, generally wound with insulated copper or aluminium wire (flat or round).

A winding connected to the power supply, known as the primary winding (or original winding), this side is known as the primary side (or primary side); another winding connected to the load, known as the secondary winding (or secondary winding), this side is known as the secondary side (or secondary side).

Other structural components

The structure of s11 oil-immersed transformer also includes oil tank, insulating casing, oil storage cabinet, safety airway and so on.
