35kV Transformer

■Product Overview:

The 35kV class transformer is more advanced in design, with substantial improvements and enhancements in materials, structure and workmanship. The high and low voltage clamping parts are tightened by steel tension bands or upper and side beams to form a strong frame structure. Enhanced core clamping force and resistance to transportation impact. Strong short-circuit resistance, beautiful appearance and modeling, reliable operation, low loss, low noise, reaching the advanced level of similar foreign products.

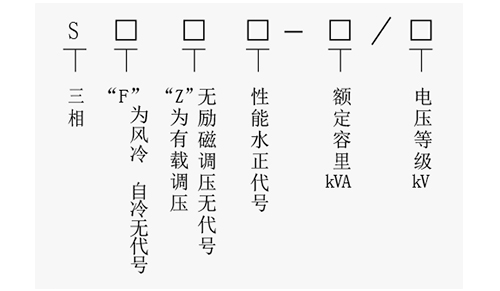

■Model Meaning:

■Implementing standards:

GB 1094.1～2 General Principles for Power Transformers, Temperature Rise of Oil-immersed Transformers.

GB 1094.3     Insulation Levels, Insulation Tests and External Insulation Air Gaps

GB l094.5       Capacity of power transformers to withstand short circuits.

GB/T6451      Technical parameters and requirements for oil-immersed power transformers.

GB/T15164    Load Guidelines for Oil-immersed Power Transformers

GB2536         Oil Of Transformer.

The above standards shall be subject to new releases; other requirements for equipment shall be subject to the corresponding new national or professional standards.

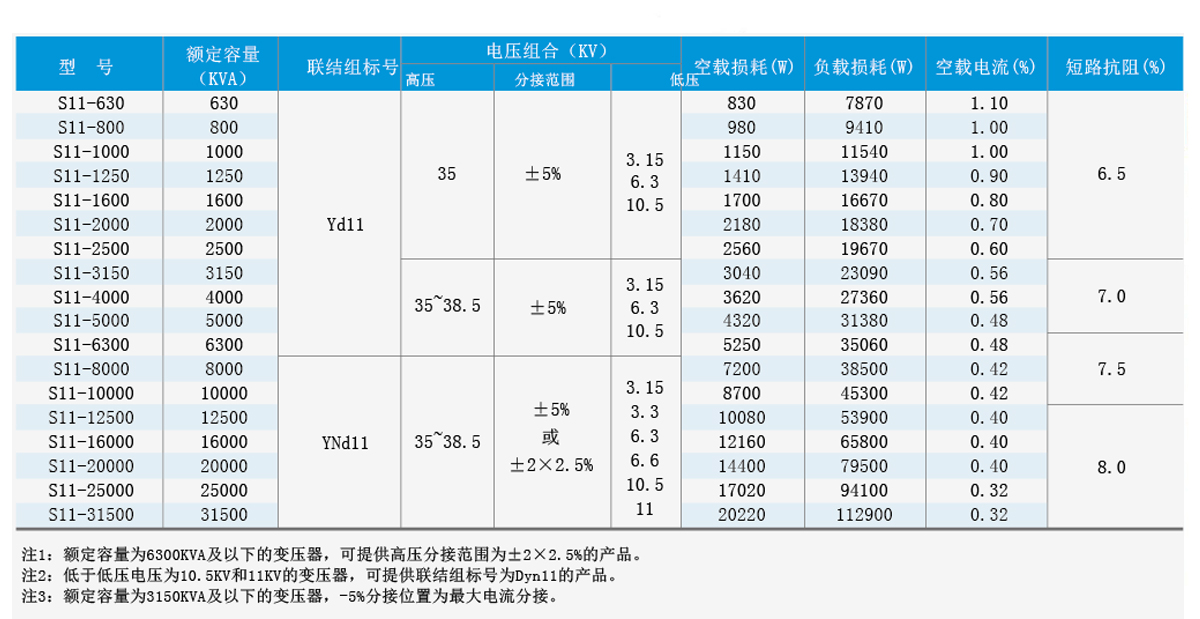

630KVA～31500KVA Three-phase double-winding non-excited voltage regulator power transformer parameter table：
