SH15 Amorphous alloy transformer

Release time:2020-07-03

Model name:SH15
No load loss:33-900
Capacity:30-2500KVA
Voltage:4%-5%
Material:copper

Product details

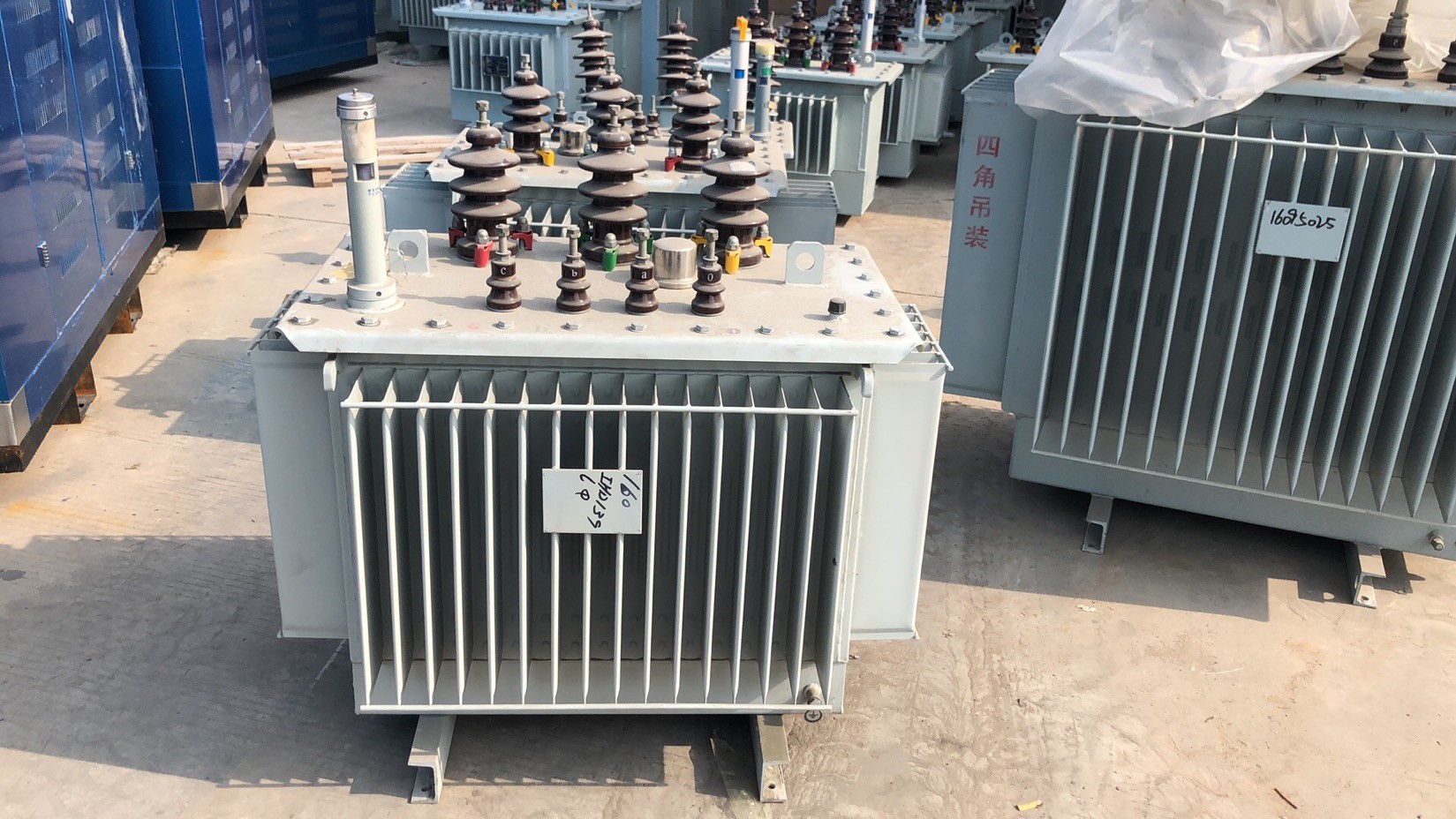

SH15 Amorphous alloy transformer

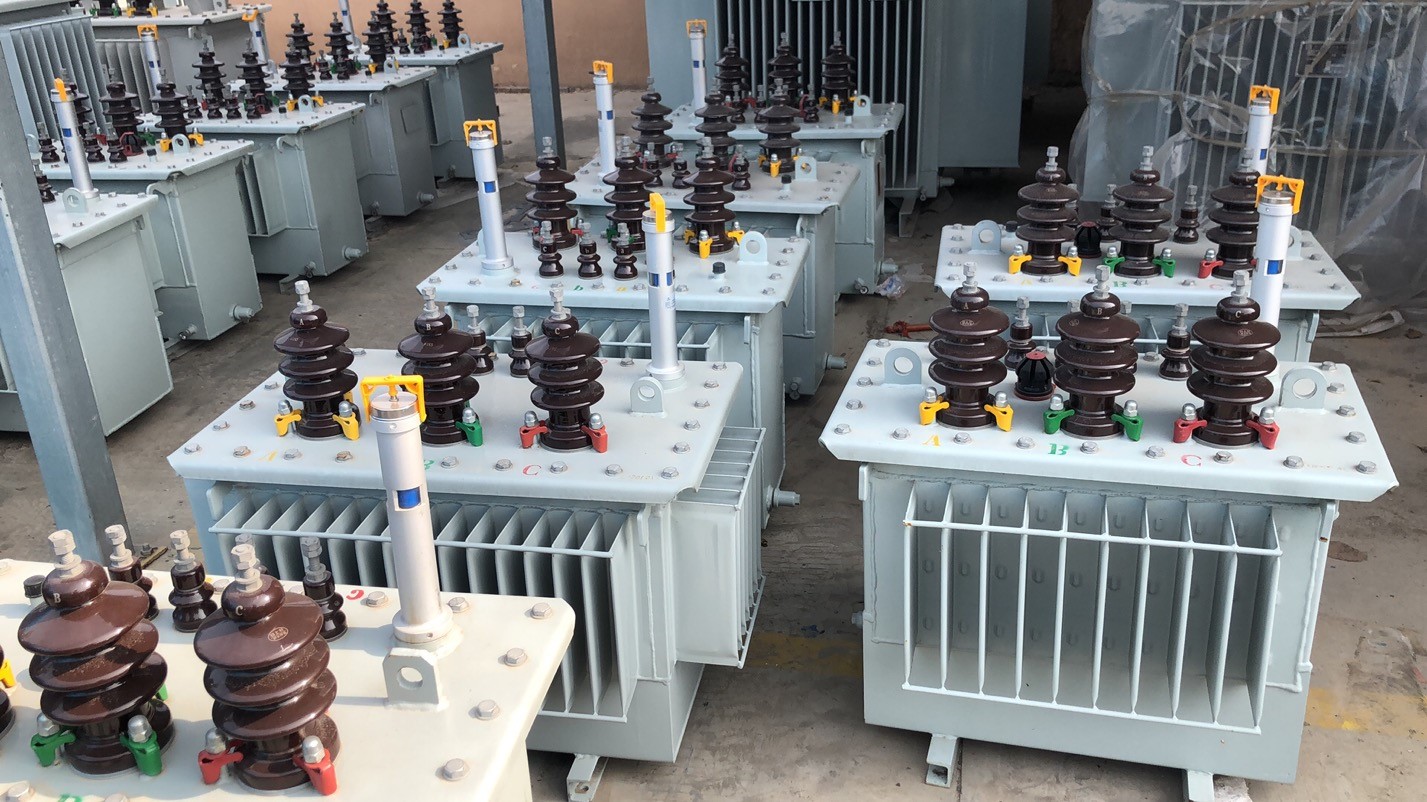

SH15 Amorphous alloy transformer

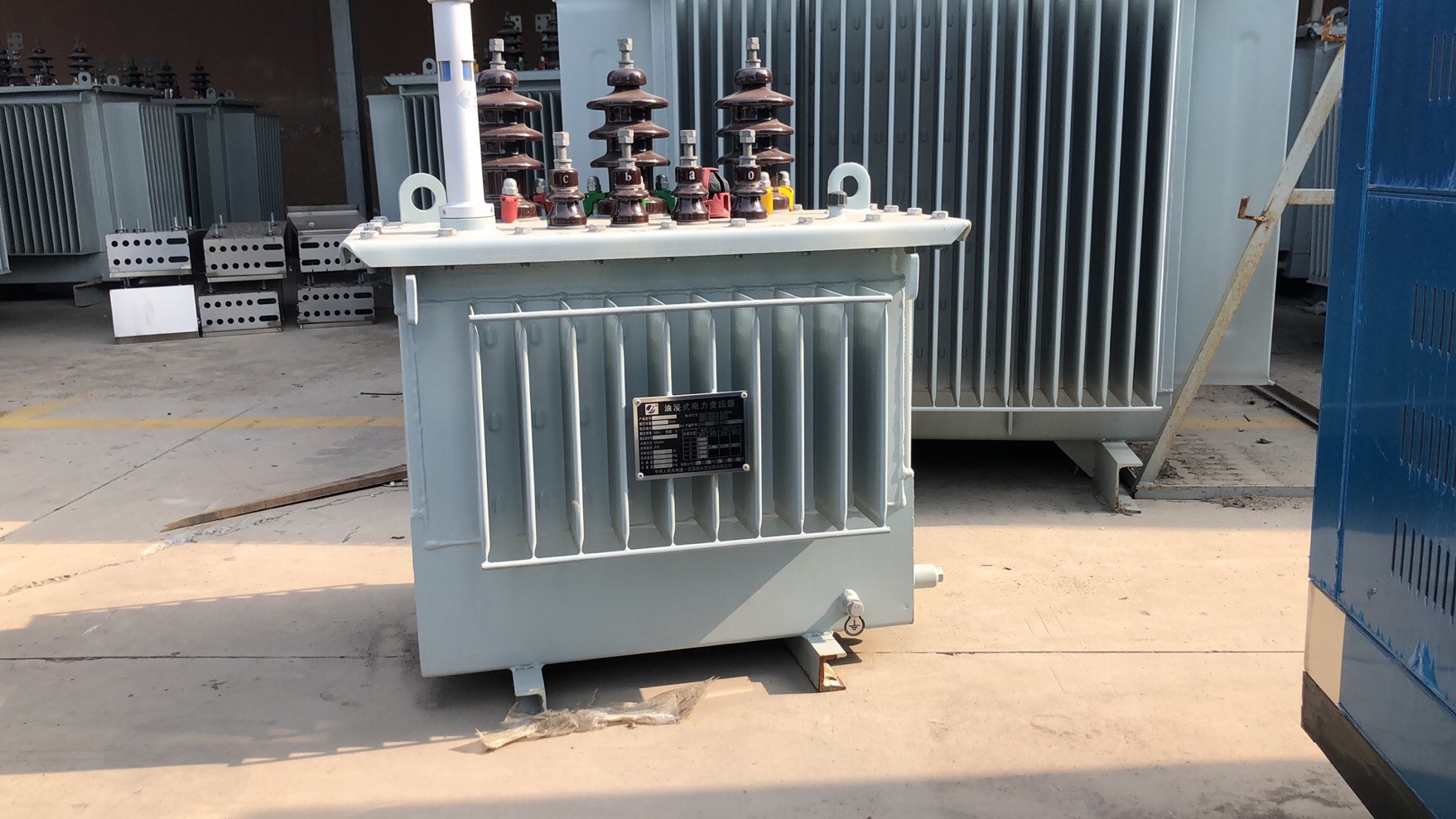

SH15 Amorphous alloy transformer

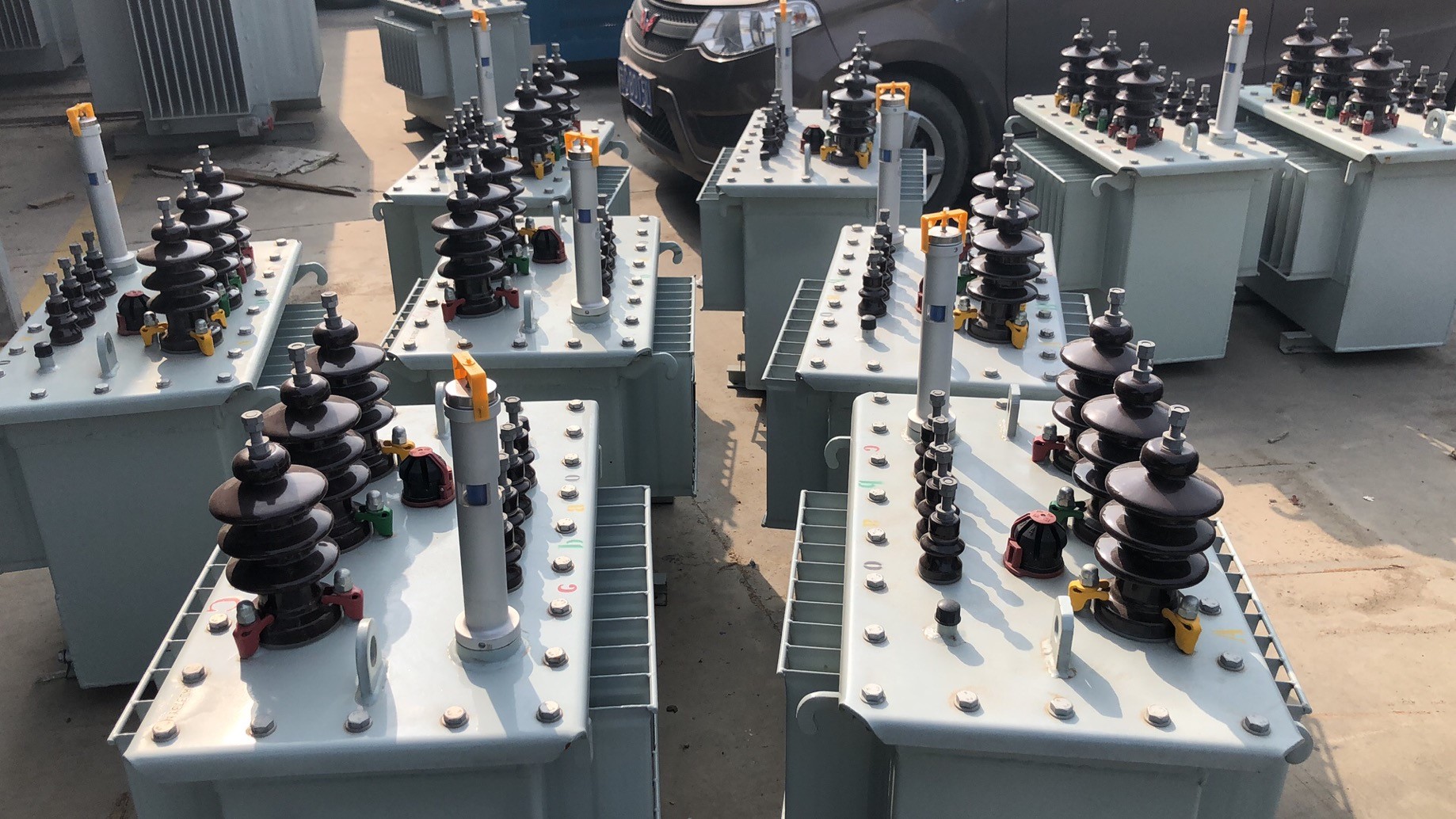

SH15 Amorphous alloy transformer

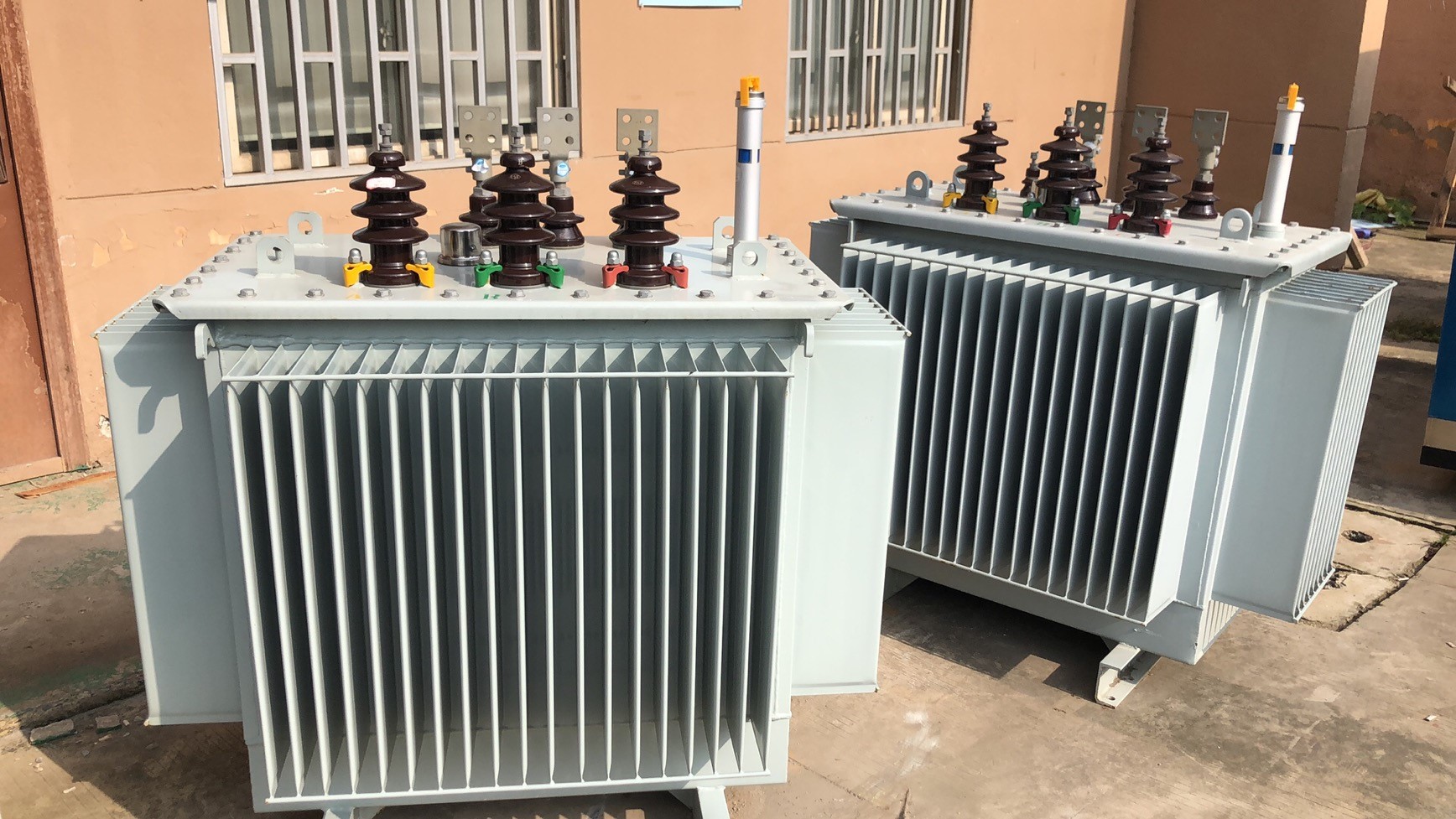

SH15 Amorphous alloy transformer

■Product Overview:

SH15 amorphous alloy transformer is oil-filled sealed type. The principle is the same as sealed power transformers. Amorphous alloy base elements are iron, nickel, cobalt, silicon, boron, carbon and other components. Is a kind of isotropic soft magnetic material, magnetization power is small, there is no obstacle to the domain wall movement of the structural defects, the thickness is thin, only 0.027mm, the filling coefficient accordingly become small, only 0.75 ~ 0.8, high resistivity, is 3 ~ 6 times the silicon steel plate, the hardness is 5 times the silicon steel sheet, amorphous alloy material is particularly sensitive to stress.

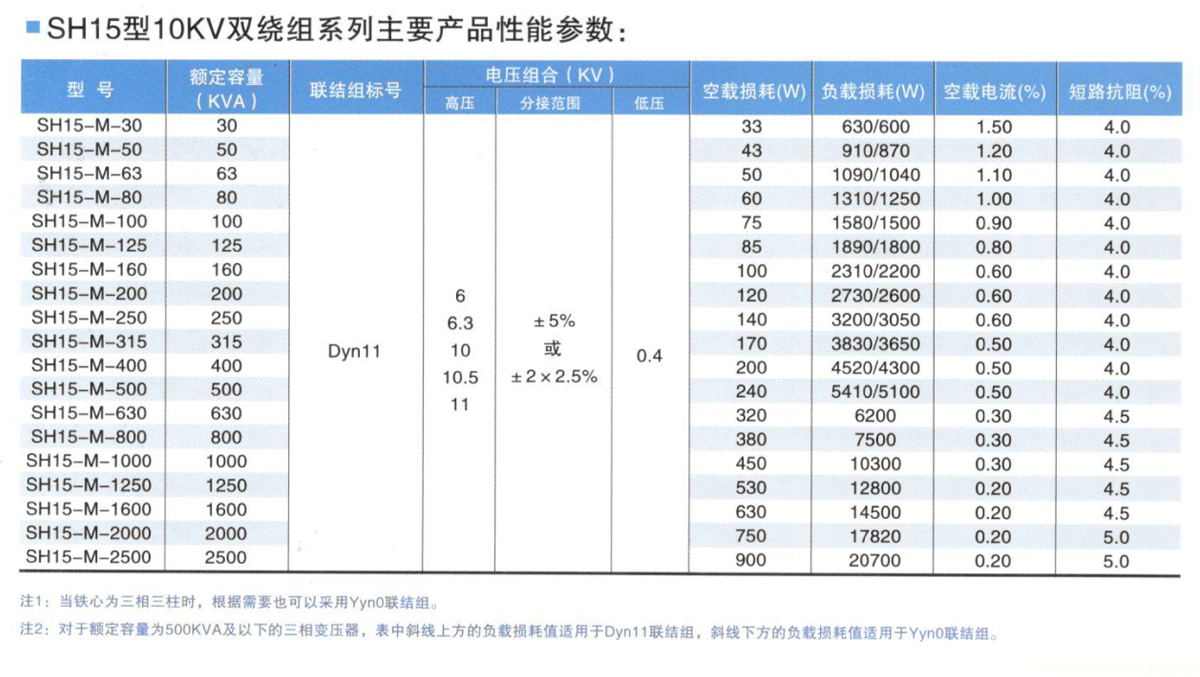

SH15-M-30~2500/6~10 series products, no-load loss in GB/T6541 standard value based on 70% reduction. Implementation standard GB/T25446-2010 "oil-immersed amorphous alloy core distribution transformer technical parameters".

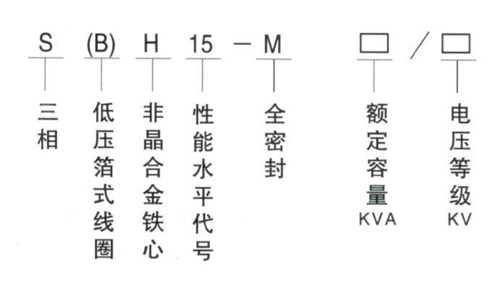

■Model Meaning:

SH15 Amorphous alloy transformer
